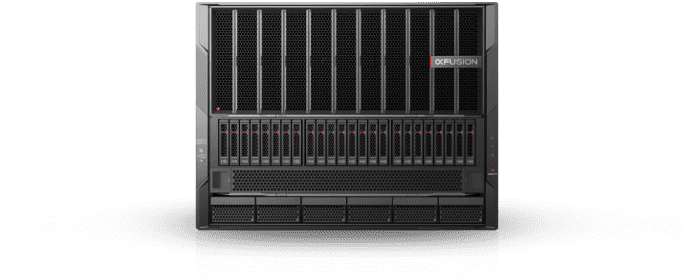

A new generation of AI flagship G8600 V7
| Form: | 8U AI server |
| Processor: | 2 4th/5th Gen Intel ® Xeon ® Scalable processors supporting a maximum power of 385W per processor |
| Chipset: | Emmitsburg PCH |
| Memory: | 32 memory slots are flexible and optional, supporting 5600MT/s, with a maximum single capacity of 256GB |
| Local storage: |
Supports front 8×2.5-inch SAS/SATA hard drives + rear 8×2.5-inch NVMe SSD hard drives
Support Flash storage: Dual M.2 SSDs
|
| RAID support: | Optional support for RAID0, 1, 10, 5, 50, 6, 60, etc., support Cache supercapacitor protection, and provide RAID level migration, disk roaming, self-diagnosis, web remote setting and other functions |
| GPU Acceleration Module: | Support 8GPU modules |
| Internet: | Multiple network expansion capabilities, support up to one OCP 3.0 network card, optional on demand, and support notification hot-swapping |
| PCle Extension: | It supports up to 13 PCIe expansion slots, 12 PCIe 5.0 x16 standard expansion slots, and 1 OCP 3.0 NIC card |
| Fans: | GPU area: 10 x 54V fans, support N+1 redundancy; CPU area: 5 x 12V fans, support N+1 redundancy |
| Power supply: |
• 54V power supply area
It can be configured with 6 hot-swappable power modules, supports cabinet-level N+N redundant backup, and can be configured with 2+2, 3+1, 3+3, 4+2, 5+1 configurations according to the load, and can choose 3000W titanium power supply
• 12V power supply area
It can be configured with 2 hot-swappable power modules, supporting 1+1 redundancy, and can choose from 3000W titanium power supply, 2000W titanium power supply or 2000W platinum power supply
|
| Management: |
The iBMC chip integrates a dedicated management GE network port, providing comprehensive fault diagnosis, automated operation and maintenance, hardware security reinforcement and other management features:
• iBMC supports standard interfaces such as Redfish, SNMP, and IPMI2.0; provides a remote management interface based on HTML5/VNC KVM; It supports out-of-band management functions such as monitoring, diagnosis, configuration, agentless, and remote control, simplifying management complexity
• Optional FusionDirector management software provides advanced management features such as five intelligences to achieve intelligent, automated, visual, and refined management throughout the life cycle
Operating systems: Ubuntu, SUSE Linux Enterprise Server, Red Hat Enterprise Linux, etc
|
| Safety features: | It supports security features such as power-up password, administrator password, TPM 2.0, and secure boot |
| Operating Temperature: | 5℃～35℃（41℉～95℉） |
| Product Certifications: | CQC、CE、RoHS |
| Installation kit: | Supports L-shaped slides |
| Dimensions (Height× Width× Depth): | 352.8mm×447mm×925mm (height×width× depth) |

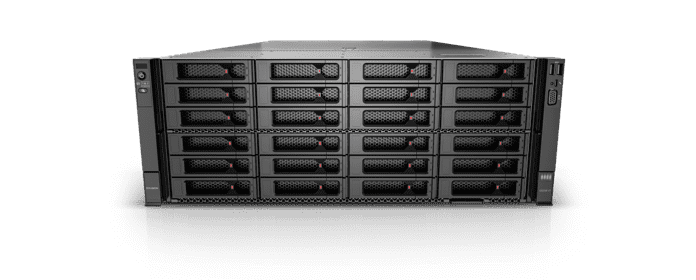

Extra large storage Reliable and secure 5288 V7
| Form: | 4U rack server |
| Processor: | 1/2 fourth/fifth generation Intel ® Xeon ® Scalable processors, a single processor supports up to 385W, can support Lanqijin processors |
| Chipset: | Emmitsburg PCH |
| Memory: | 32 DDR5 memory slots are flexibly selectable, up to 5600MT/s |
| Local storage: |
Support a variety of different hard drive configurations, hard disks support hot-swappable:
• Configurable 4 x 2.5-inch SAS/SATA/SSD hard drives
• 24~44 x 3.5" SAS/SATA hard drives can be configured
• 4 NVMe SSD drives can be configured
• Configurable E1.S or E3.S hard drive*
Flash Storage: • Dual M.2 SSDs
|
| RAID support: | It supports RAID0, 1, 10, 1E, 5, 50, 6, 60, etc., supports Cache supercapacitor protection, and provides RAID level migration, disk roaming, self-diagnosis, web remote settings, and other functions |
| Internet: |
Supports multiple network expansion capabilities
Support OCP 3.0 NIC - 2 FLEX IO card slots support 2 OCP 3.0 NICs respectively, and support on-demand selection; Hot-swappable and PCIe 5.0 support
|
| PCIe Expansion: |
Up to 10 PCIe expansion slots
2 OCP3.0-specific FLEX IO expansion slots, 10 standard PCIe expansion slots, and PCIe 5.0 support
|
| GPU Accelerator Card: | 10 single-width GPU acceleration cards |
| Fans: | 6/8 hot-swappable counter-cyclone fans with N+1 redundancy |
| Power supply: | Optional 900W/1200W/1500W/2000W/3000W platinum/titanium hot-swappable power supply, supporting 1+1 redundancy |
| Management: |
The iBMC chip integrates a dedicated management GE network port to provide comprehensive management features such as fault diagnosis, automated operation and maintenance, and hardware security reinforcement
• iBMC supports standard interfaces such as Redfish, SNMP, and IPMI2.0; provides a remote management interface based on HTML5/VNC KVM; It supports out-of-band management functions such as monitoring, diagnosis, configuration, agentless, and remote control, simplifying management complexity
• Optional FusionDirector management software provides advanced management features such as five intelligences to achieve intelligent, automated, visual, and refined management throughout the life cycle
|
| Operating System: | Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, CentOS, Oracle, Ubuntu, Debian, openEuler, etc. |
| Safety features: | It supports security features such as power-on password, administrator password, TPM 2.0, security panel, secure boot, and lid opening detection |
| Operating Temperature: | 5ºC~35ºC (41ºF~95ºF) (ASHRAE Class A1/A2 compliant) |
| Product Certifications: | CE, UL, CCC, FCC, VCCI, RoHS, etc. |
| Installation kit: | Support L-shaped slide, retractable slide, and holding rail |
| Dimensions (HxWxD): | 3.5-inch hard drive chassis size: 175mm×447mm×798mm |

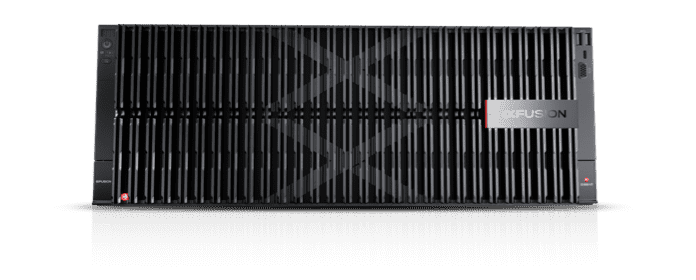

Balanced and flexible AI is the preferred choice G5500 V7
| Form: | 4U AI server |
| Processor: | 2 4th/5th Gen Intel ® Xeon ® Scalable processors supporting a maximum power of 385W per processor |
| Chipset: | Emmitsburg PCH |
| Memory: | 32 memory slots are flexible and optional, supporting 5600MT/s, and a maximum capacity of 256GB per stick |
| Local storage: |
Support a variety of different hard drive configurations, hard disks support hot-swappable:
• Up to 24 x 2.5/3.5" SAS/SATA hard drives can be configured
• Up to 12 NVMe SSDs + 8 SATA/SAS drives
Support Flash storage: dual M.2 SSDs
|
| RAID support: | It supports RAID0, 1, 10, 5, 50, 6, 60, etc., supports Cache supercapacitor protection, and provides RAID level migration, disk roaming, self-diagnosis, web remote setting and other functions |
| GPU Accelerator Card: | Supports 10 double-width GPU accelerator cards |
| Internet: | Multiple network expansion capabilities, support 3 OCP 3.0 network cards |
| PCle Extension: | Up to 14 PCIe 5.0 standard slots, including 10 dedicated slots for GPU cards |
| Fans: | 6/8 hot-swappable counter-rotary fans support N+1 redundancy |
| Power supply: | It can be configured with 4 hot-swappable power modules, supports N+N/N+M redundancy, and can choose 2000W platinum/titanium power supply, 2600W platinum power supply, and 3000W titanium power supply |
| Management: |
The iBMC chip integrates a dedicated management GE network port, providing comprehensive fault diagnosis, automated operation and maintenance, hardware security reinforcement and other management features:
• iBMC supports standard interfaces such as Redfish, SNMP, and IPMI2.0; provides a remote management interface based on HTML5/VNC KVM; It supports out-of-band management functions such as monitoring, diagnosis, configuration, agentless, and remote control, simplifying management complexity
• Optional FusionDirector management software provides advanced management features such as five intelligences to achieve intelligent, automated, visual, and refined management throughout the life cycle
|
| Operating System: | Microsoft Windows Server, SUSE Linux Enterprise Server, Red Hat Enterprise Linux, Ubuntu, etc. |
| Safety features: | It supports security features such as power-on password, administrator password, TPM 2.0, security panel, secure boot, and lid opening detection |
| Operating Temperature: | 5°C~35°C (41°F~95°F), compliant with ASHRAE Class A1/A2 |
| Product Certifications: | CE, UL, CCC, FCC, VCCI, RoHS, etc. |
| Installation kit: | Support L-shaped slide, retractable slide, and holding rail |
| Dimensions (Height× Width× Depth): | 175mm×447mm×898mm |

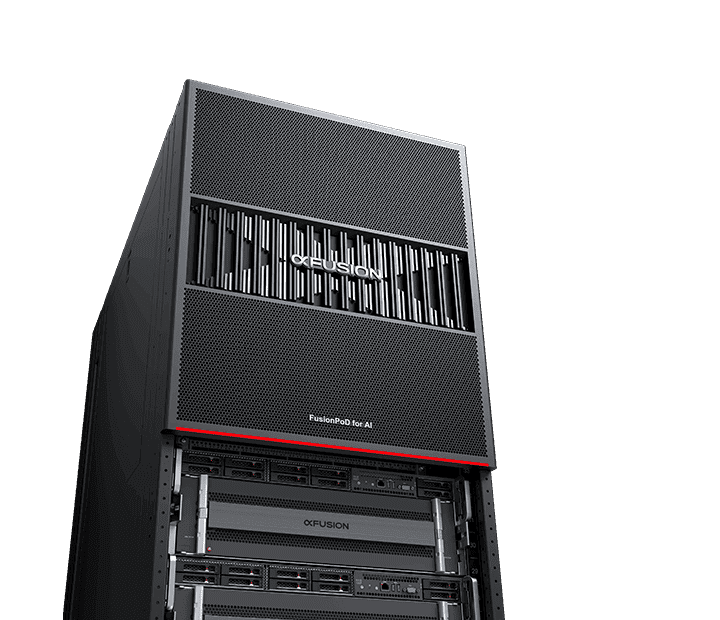

The architecture is open and multi-computing power compatible Whole cabinet liquid cooling server
| Servers: | 4U×8pcs nodes, 64 GPUs; 2× Intel 4th generation processors; NVIDIA HGX 8-GPU |
| Power Supply: | Maximum power supply of 105kW; Support 12 channels of 3-phase 380V input, 2N power supply system; Support 3kW power module, support N+1 redundancy; |
| Exchange: | Supports 5 switch slots; Supports general-purpose switches; Custom switches are supported |
| Management: | Provide power management, liquid cooling monitoring, temperature and humidity, secondary pipeline leakage detection and other performance monitoring and management of the whole cabinet |
| Dimensions: |
Without liquid cold door: Optical cable size:
2250mm×600mm×1200mm； Cable Size: 2250mm×600mm×1300mm
With liquid cold door: Fiber optic cable size:
2250mm×600mm×1325mm； Cable Size: 2250mm×600mm×1425mm
|
| Node CPU: | 2× Intel 4th generation processors; Supports liquid-cooled CPUs 8470Q and 6458Q |
| Node configuration: | Supports 32 DDR5 DIMM memory modules; Supports up to 8*2.5-inch NVMe+2*2.5-inch SAS/SATA disks; RAID card or VROC is supported, and RAID0/1 is supported |
| Node Expansion: | Supports 32 DDR5 DIMM memory modules; Supports up to 8*2.5-inch NVMe+2*2.5-inch SAS/SATA disks; RAID card or VROC is supported, and RAID0/1 is supported |
| Node Expansion: | Expansion IO: 8*PCIe5.0 x16 FHHL/HHHL slots + 2*HHHL+2*FH3/4L slots + 1*HHHL slots (RAID only); |
| Management interface: | 1*BMC management network port (rear panel); |
| Backplane Interface: | 4*BUSBAR interface + 1*1/2" liquid-cooled quick plug; |
| Other front panel IOs: | 2*USB3.0+1*VGA+1*Serial port, 1*PowerButton button/indicator, 1*Health indicator, 1*UID button/indicator |
| Node liquid cooling part: | CPU+VRD+HGX 8-GPU |
| Node Power: | 1*3000W Power Module + 3*54V Power Supply (HGX GPU Module) |
| Node Fans: | 10*6056 double-layer fan |
